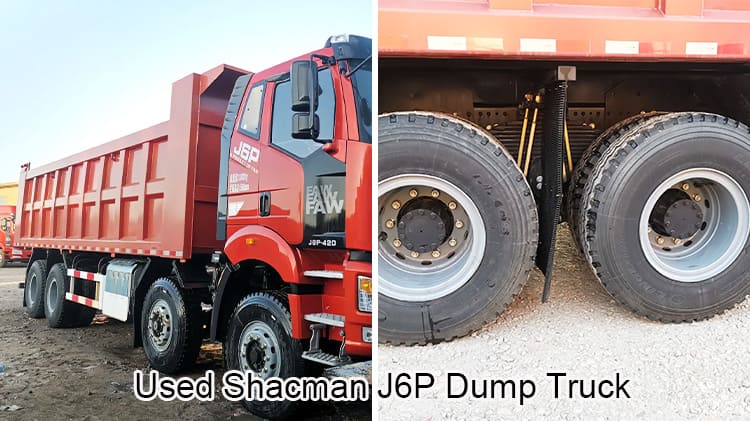

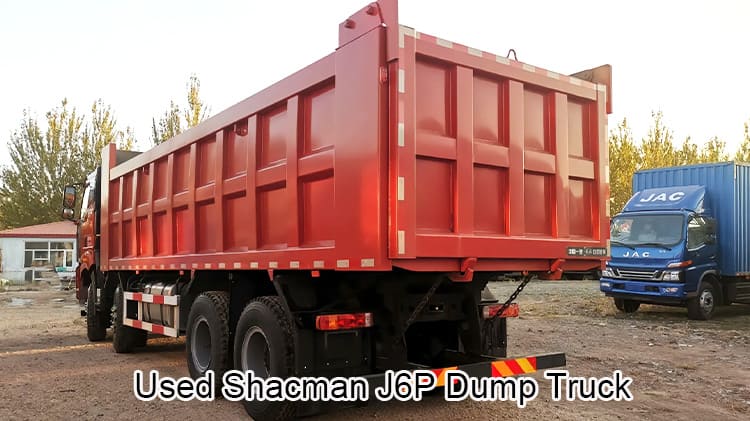

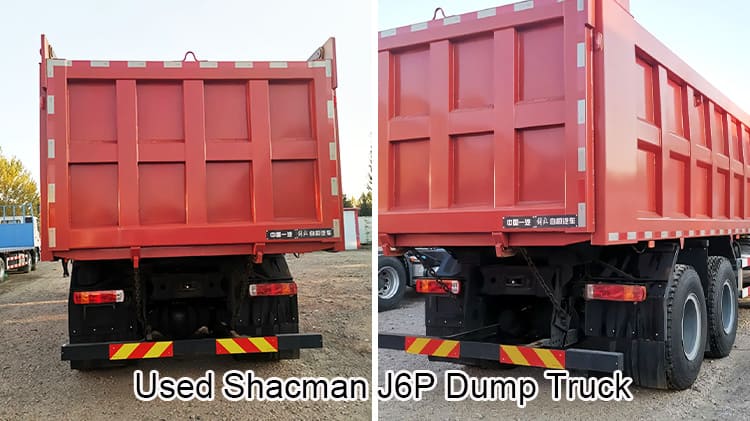

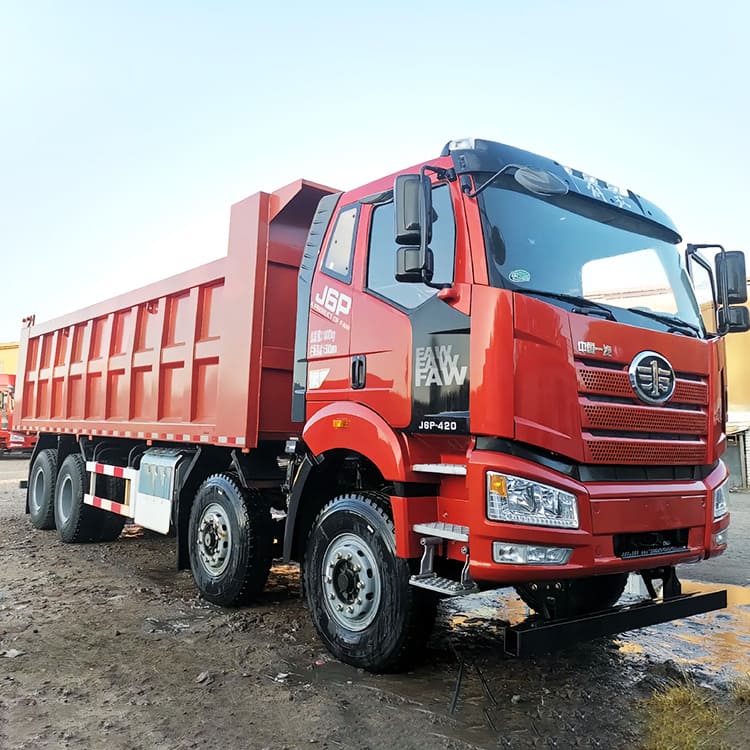

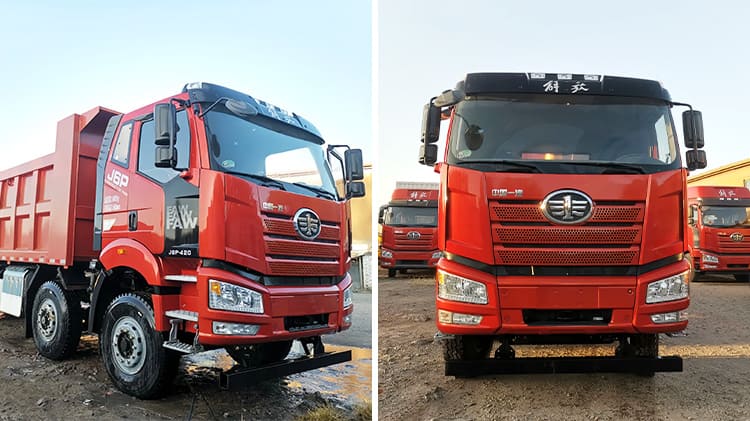

The used Faw J6P dump truck 8x4 is especially suitable for heavy-duty working conditions such as urban construction muck, mine transportation, sand and gravel distribution, etc. Buy the used Faw 420 hp J6P dump truck now and enjoy a 12-month long warranty on the three major pieces of engine/transmission/rear axle.
Truck Model: CA3310P66K24L4T4AE5
Engine Model: CA6DM2-42E51
Max Horsepower: 420hp
Cab: J6P
Drive Type: 8x4
Transmission: CA12TAX210M
Displacement: 11.05L
Fuel Tank Capacity: 400L
Fuel Type: Diesel
Emission: Euro Ⅴ
Steering System Model: ZF, LHD

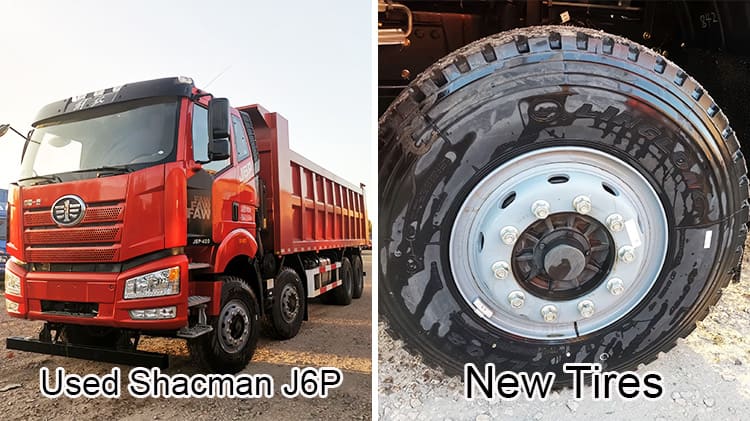

Tyre: 12.00R20
Number of Tires: 12
Frame size: 300×80×(8+8)mm
Wheelbase(mm): 2100+3600+1350mm
Rear axle speed ratio: 5.921
Container Form: Self-unloading Type
Container Type: Square Type
Cab Lift: Electric, Front lifting
Cargo Dimension(LxWxH)(mm): 7600×2350×1500
Truck Dimension(LxWxH)(mm): 10540x2500x3680
Vehicle weight: 15.02 tons
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
The used Faw J6P dump truck 8x4 is powered by Jiefang Power's CA6DM3 series 420 hp diesel engine, which is specially designed for short and medium distance heavy-duty transportation. The used Faw J6P dump truck 8x4 features a gold combination of "high horsepower + lightweight". The 12L displacement engine bursts with 420 horses of powerful power, and the used Faw J6P dump truck 8x4 can achieve the performance advantages of a "big horse-drawn car". Whether it's sand and gravel transportation on the site or ore transfer in the mine, the used Faw J6P dump truck 8x4 starts fully loaded with just a light step on the accelerator. The used Faw J6P dump truck 8x4 can still maintain an economic speed of 70km/h under heavy load.
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
[Intelligent brake]
The used Faw J6P dump truck 8x4 is equipped with a dual-valve diagonally-fed air brake system. Each axle of the used Faw J6P dump truck 8x4 is independently configured with relay valves and adopts an X-diagonal air path layout. Actual measurement data shows that the braking distance of the used Faw J6P dump truck 8x4 is 2.3 meters shorter than that of the traditional system when fully loaded at 40km/h. The used Faw J6P dump truck 8x4's front and rear axle synchronous braking technology is paired with an ABS anti-lock braking system.
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
[Super bearing and durable]
The chassis core components of the used Faw J6P dump truck 8x4 are fully upgraded:
1) 8-hole V-shaped thrust rod: Compared with the traditional 4-hole structure, the lateral stability is improved by 40%.
2) 300-wheel side reduction axle: J6P Faw used trucks for sale come standard with a 16-ton reinforced wheel reduction axle.
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
[Efficient and reliable transmission]
The used Faw 420 hp J6P dump truck is matched with the FAW Jiefang CA12TAX210M twelve-speed gearbox and has a large speed ratio design of 12.189 in the head gear. The used Faw 420 hp J6P dump truck achieves a smooth start in 1st gear (max input torque 2100 N · m). The used Faw 420 hp J6P dump truck is cruising at 80km/h at just 1400rpm. According to actual measurements, under typical construction site conditions, the overall efficiency of the transmission system of the used Faw 420 hp J6P dump truck reaches 96.2%, which is 3-5% higher than similar products.
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
[Convenient maintenance]

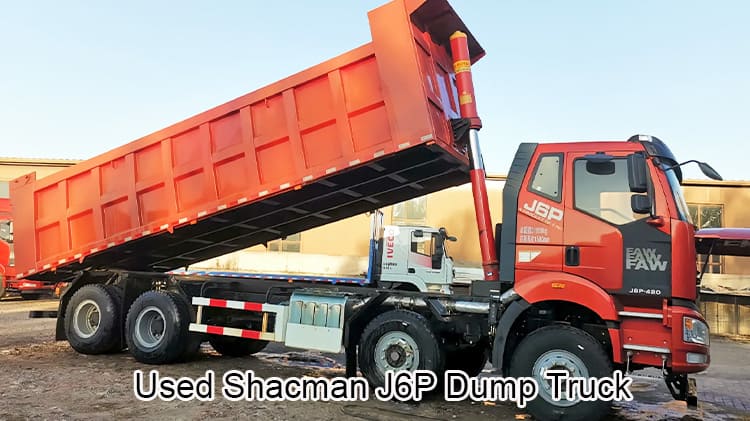

• Front hydraulic lift system: The cylinder installation position of the used Faw 420 hp J6P dump truck is moved 1.2 meters forward compared to the traditional design, and the center of gravity is lowered by 15%. The used Faw 420 hp J6P dump truck comes standard with Φ180mm four-stage telescopic cylinders. The used Faw 420 hp J6P dump truck has a lift time ≤ 60 seconds (fully loaded).
• Side-mounted air filter system: The used Faw 420 hp J6P dump truck arranges the two-stage air filter assembly in front of the steering axle.
Used Faw J6P Dump Truck | Used Faw 420 hp J6P | 8x4 Faw Used Trucks for Sale | J6P Faw Used Trucks for Sale in Rwanda
[Comfortable driving]
The used Faw 420 hp J6P dump truck comes standard with a 220V vehicle power supply, an 8-inch intelligent central control screen, and supports reversing imaging and tire pressure monitoring functions. The sleeper width of the used Faw 420 hp J6P dump truck is extended to 850mm. The used Faw 420 hp J6P dump truck is equipped with humanized designs such as reading lights and storage compartments to meet the needs of temporary rest.
