Drivetrain: second hand Shacman X5000 8x4 dump truck matched to Fast 12-speed helical gearbox. The rear axle of the second hand Shacman X5000 8x4 dump truck features Hand axles, ensuring efficiency and durability in power delivery.
Axle: The front axle of the second hand Shacman X5000 8x4 dump truck adopts a 5.5 T-class front axle with Handman technology, and the rear axle is a 11.5 T-class single-stage reduction axle with Handman technology. The standard speed ratio is 3.7, and different speed ratios can be selected according to transportation conditions. The rear axle uses a dual V pushrod design that increases the stability and load-carrying capacity of the second hand Shacman X5000 8x4 dump truck.
Second Hand Shacman X5000 8x4 Dump Truck | Second Hand Shacman Dump Trucks X5000 8x4 550hp Price in Mali
Second Hand Shacman X5000 8x4 Dump Truck | Second Hand Shacman Dump Trucks X5000 8x4 550hp Price in Mali
Second Hand Shacman X5000 8x4 Dump Truck | Second Hand Shacman Dump Trucks X5000 8x4 550hp Price in Mali
Second Hand Shacman X5000 8x4 Dump Truck | Second Hand Shacman Dump Trucks X5000 8x4 550hp Price in Mali
Second Hand Shacman X5000 8x4 Dump Truck | Second Hand Shacman Dump Trucks X5000 8x4 550hp Price in Mali
Truck Model: SX3319
Engine Model: WP13.550E62
Drive Type: 8x4
Transmission: Fast 12
Displacement: 12.54L
Fuel Tank Capacity: 300L
Max Horsepower: 550hp
Fuel Type: Diesel
Emission: Euro Ⅲ
Steering System Model: ZF, LHD
Front Axle: MAN 5.5T
Rear Axle: 11.5T MAN
Tyre: 12.00R20
Number of Tires: 12
Wheelbase(mm): 1950+4025+1400mm
Container Form: Self-unloading Type
Container Type: Square Type
Cab Lift: Electric, Front lifting
Cargo Dimension(LxWxH)(mm): 8000×2350×1500
Dimension(LxWxH)(mm): 10950x2550x3500
Curb Weight: 15.5 Ton
Rated Load: 15.37 Ton
Tonnage Class: Heavy Truck
Configuration: In terms of intelligent configuration, the second hand Shacman X5000 8x4 dump truck is equipped with advanced driving assistance functions such as lane departure warning, which further ensures driving safety and reflects the positioning of an intelligent heavy truck.
Engine: The second hand Shacman X5000 8x4 dump truck is equipped with Weichai WP13.550E engine with a maximum power of 550 horsepower (405kW) and excellent power performance. The second hand Shacman X5000 8x4 dump truck is particularly suited to the heavy load needs of sand and gravel transportation and the coal industry. The engine of the second hand Shacman X5000 8x4 dump truck is equipped with in-cylinder braking function, which can effectively reduce the number of brakes when driving on long downhill sections. At the same time, it can also reduce the risk of brake thermal attenuation and improve the safety of the second hand Shacman dump trucks X5000 8x4 550hp.
Cab: The second hand Shacman dump trucks X5000 8x4 550hp is equipped with a four-spoke steering wheel, and its left side integrates steering, high and low beam adjustment, wiper speed adjustment and AUTO gear control switch. On its right side, there is an auxiliary braking system opening handle to facilitate the operation of the second hand Shacman dump trucks X5000 8x4 550hp. The second hand Shacman X5000 8x4 dump truck has a reasonable layout of the main and auxiliary seats and easy interior operations, ensuring driving comfort and convenience.
Comfort: The sleeper design of the second hand Shacman X5000 8x4 dump truck is spacious, further enhancing the driver's comfort during long breaks.
Safety: The second hand Shacman dump trucks X5000 8x4 550hp has a guard bar installed at the bottom of the bumper, which enhances safety protection in case of accidental collision. This makes the second hand Shacman dump trucks X5000 8x4 550hp especially suitable for heavy load transportation in complex working conditions. The rear deflector adopts a slash hollow design, which not only reduces wind resistance during driving, but also effectively improves the fuel economy of second hand Shacman dump trucks X5000 8x4 550hp.

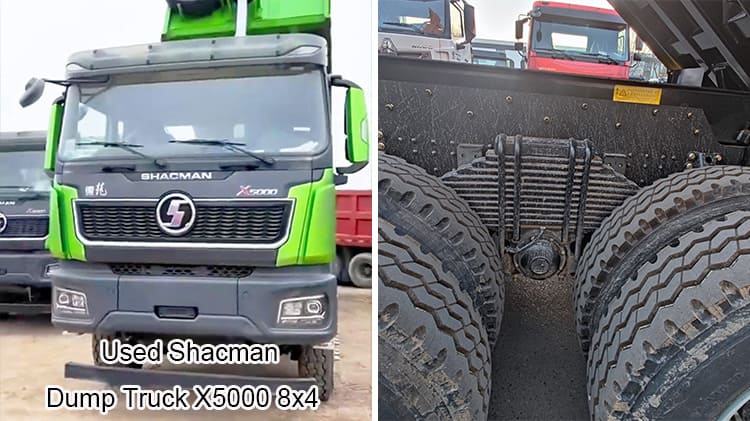

Lightweight design: The second hand Shacman dump trucks X5000 8x4 550hp's gearbox housing, air cartridge, wheel rims and other components are made of aluminum alloy. The front axle of the second hand Shacman dump trucks X5000 8x4 550hp adopts a disc brake design. The suspension of the second hand Shacman dump trucks X5000 8x4 550hp is designed with few leaf springs at the front and rear. These lightweight configurations effectively reduce the dead weight of the second hand Shacman dump trucks X5000 8x4 550hp and improve transportation efficiency.
