With a strong power system and sophisticated design, the used Howo 4x2 heavy duty truck crane 8 ton boom truck can significantly improve work efficiency, reduce operating time, while reducing the need for manpower, and effectively save labor costs.
Load Capacity: used boom truck Howo 4x2 heavy duty truck crane uses German Man 11 ton rear axle and thick double deck frame design. This configuration greatly increases the carrying capacity of the used boom truck Howo 4x2 heavy duty truck crane, whether it is a long period of heavy load transport or high-intensity lifting operations, the vehicle can easily handle. In addition, the double-deck frame structure used in the boom truck Howo 4x2 heavy duty truck crane configuration effectively improves the overall compression capacity and durability of the body, enhancing the stability of the frame.
Crane configuration: According to the needs of different sites and working environments, users can freely choose a variety of specifications such as 7 tons, 8 tons or 10 tons of cranes. The boom truck Howo 4x2 heavy duty truck crane is designed to handle heavy lifting, cargo handling, and other complex tasks with high efficiency. The flexible adjustment of the crane allows it to adapt to different working heights and lifting ranges, ensuring efficient completion of all types of engineering tasks.
Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck | Used Boom Truck Howo 4x2 Heavy Duty Truck Crane
Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck | Used Boom Truck Howo 4x2 Heavy Duty Truck Crane
Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck | Used Boom Truck Howo 4x2 Heavy Duty Truck Crane
Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck | Used Boom Truck Howo 4x2 Heavy Duty Truck Crane
Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck | Used Boom Truck Howo 4x2 Heavy Duty Truck Crane

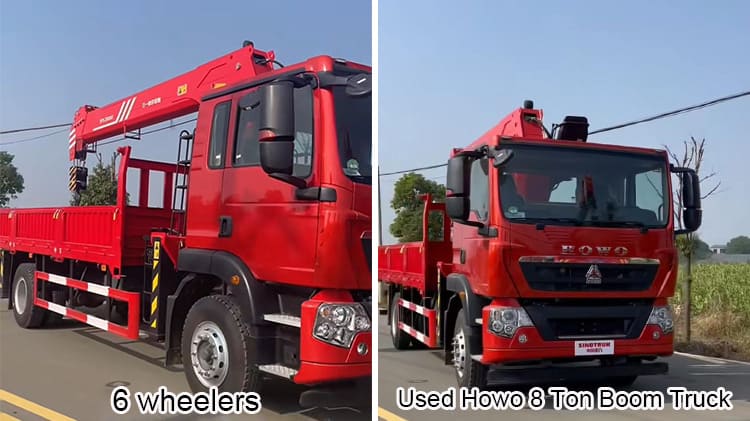

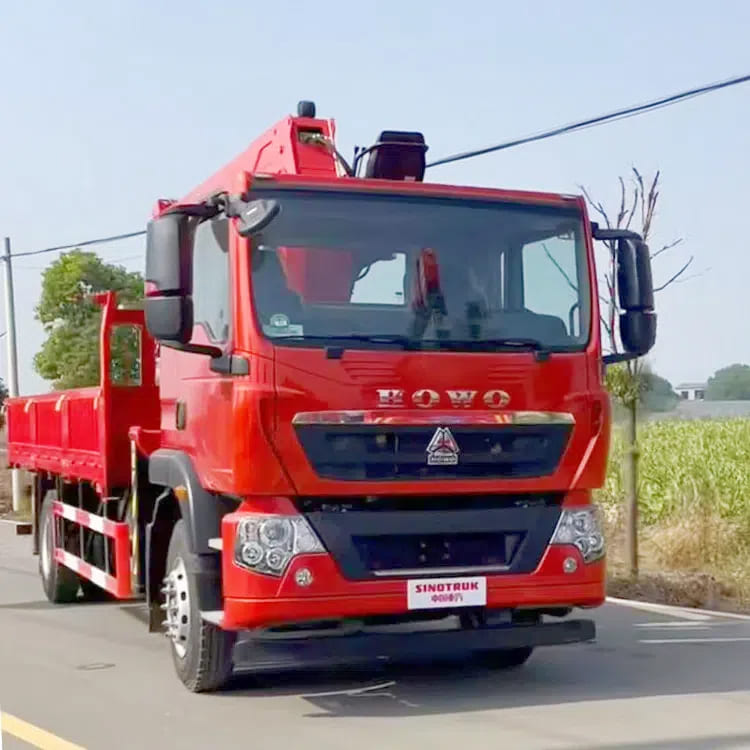

Truck Model: Used Howo 4x2 Heavy Duty Truck Crane 8 Ton Boom Truck
Engine Model: WP8.350E61
Drive Type: 4x2
Transmission: HW9
Displacement: 7.8L
Fuel Tank Capacity: 300L
Max Horsepower: 240hp
Fuel Type: Diesel
Emission: Euro Ⅴ
Steering System Model: ZF, LHD
Front Axle: HF9
Rear Axle: MAT8T
Tyre: 12.00R20
Number of Tires: 6
Cargo Dimension: length 6m, width 2.45m
Crane Arm Length: 19.6m

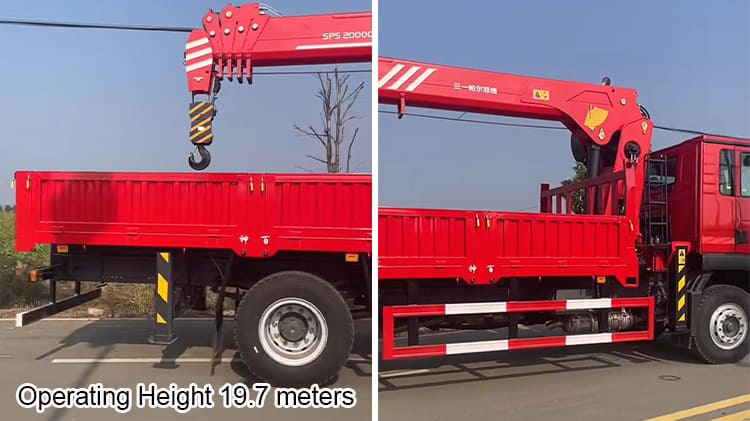

Lifting Height of Crane: 19.7m

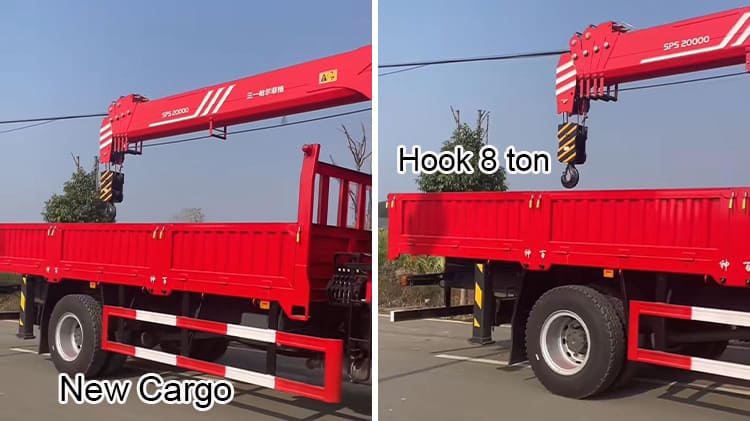

Crane Tonnage: 8 Ton
Crane Boom Number: 5
1. Matching of chassis and crane tonnage
The choice of the chassis of the used boom truck Howo 4x2 heavy duty truck crane needs to be decided according to the tonnage of the crane, ensuring that the match between the two is reasonable. If the chassis does not match the tonnage of the crane, it will affect the stability of the used boom truck Howo 4x2 heavy duty truck crane and the lifting performance of the crane. An oversized crane mounted on a too small chassis may cause the used boom truck Howo 4x2 heavy duty truck crane to be unstable and easy to roll over; However, a crane that is too small cannot exert its due hoisting capacity, resulting in low working efficiency of used boom truck Howo 4x2 heavy duty truck crane.
2. The selection principle of crane tonnage
When choosing the tonnage of the crane used in boom truck Howo 4x2 heavy duty truck crane, certain principles should be followed to ensure that the crane can meet the needs of the work and ensure long-term stability and durability. The following are a few considerations when choosing a crane tonnage:
Reasonable lifting capacity surplus: When choosing the crane used Howo 4x2 heavy duty truck crane 8 ton boom truck, try to choose to provide a certain surplus lifting capacity. This avoids frequent operation when the crane reaches its maximum load during operation and extends the service life of the crane used Howo 4x2 heavy duty truck crane 8 ton boom truck. For example, when choosing the lifting tonnage of the crane, it is best to make it reach 70%-90% of the maximum lifting capacity, rather than let the crane work at full load for a long time.
The relationship between large lifting tonnage and boom length: The maximum lifting tonnage of the crane is usually measured in the case of the shortest boom. When the boom is extended, the lifting capacity of the used Howo 4x2 heavy duty truck crane 8 ton boom truck decreases significantly. When choosing a crane, it is necessary to know under what conditions the maximum lifting capacity of the crane is measured, and select the appropriate tonnage according to the actual operating environment.
For example, a 10 ton used boom truck Howo 4x2 heavy duty truck crane may be able to achieve a 10 ton lifting capacity within the boom expansion range of less than 3 meters. However, if the boom is extended to 5 meters, the lifting capacity of the used boom truck Howo 4x2 heavy duty truck crane will drop to 5 tons, and if it is extended to 8 meters, the lifting capacity may only be 2.3 tons. Therefore, when choosing the crane, the extension range of the boom arm used in boom truck Howo 4x2 heavy duty truck crane and the actual lifting needs must be considered to ensure that the lifting capacity of the crane can meet the needs of the operation.
3. Consider the work environment and operational needs
The type and tonnage of the crane used in Howo 4x2 heavy duty truck crane 8 ton boom truck need to be selected according to the actual working environment and operation content. Different construction sites and different working scenarios have different requirements for lifting capacity.
If the work site is relatively small, the folding arm used Howo 4x2 heavy duty truck crane 8 ton boom truck may be more suitable, because it has better space adaptability; For the need for large lifting range and high-altitude work occasions, choose straight arm used Howo 4x2 heavy duty truck crane 8 ton boom truck and large tonnage crane is more suitable.
