The overall configuration of the used Shacman F3000 6x4 dump truck with Cummins engine is designed for engineering transportation requirements, especially for heavy haulage and complex operating conditions. From the powerful powertrain to the solid chassis construction, all reflect the professional engineering applicability of the used Shacman F3000 6x4 dump truck.
Engine: The used Shacman F3000 6x4 dump truck with Cummins engine is equipped with a powerful 385hp engine to ensure excellent power performance, especially for heavy transport and complex operating environments.
Stability: The used Shacman F3000 6x4 dump truck with Cummins engine has a sturdy frame with four riding bolts to ensure chassis stability. The suspension uses 12 reinforced steel plates to further enhance the load carrying capacity and operational stability of the used Shacman F3000 6x4 dump truck with Cummins engine. The enhanced 16T two-stage rear axle design provides increased load capacity and driving force, making the used Shacman F3000 6x4 dump truck with Cummins engine suitable for heavy duty conditions.

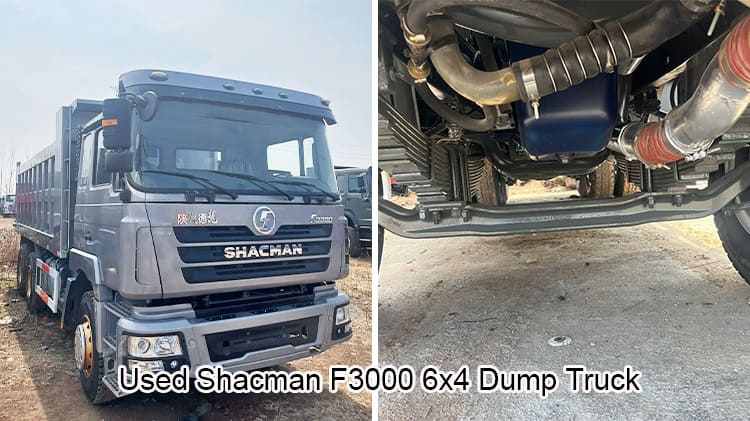

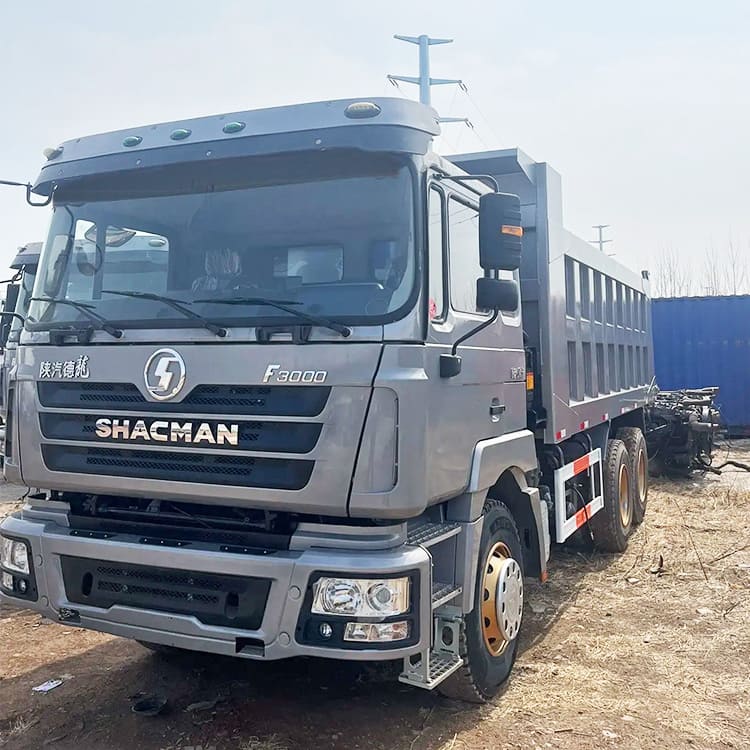

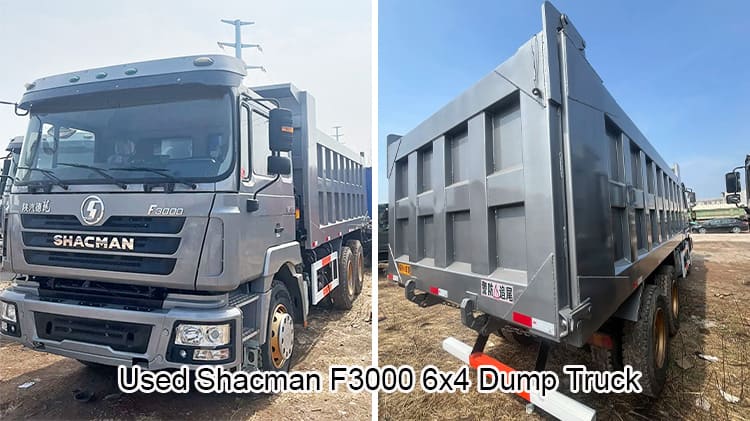

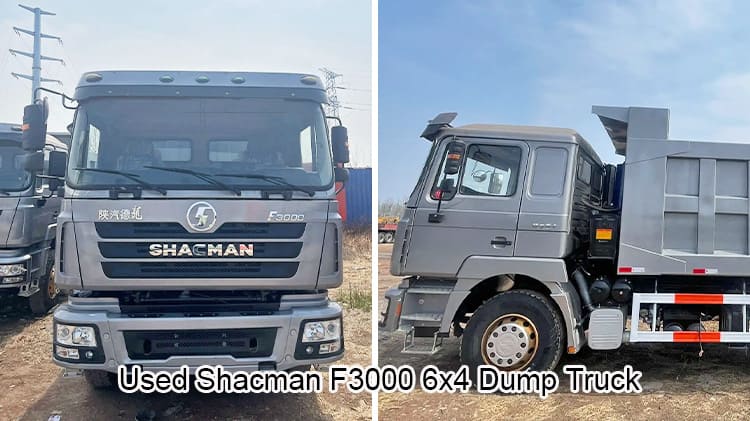

Used Shacman F3000 6x4 Dump Truck With Cummins Engine for Sale
Used Shacman F3000 6x4 Dump Truck With Cummins Engine for Sale
Used Shacman F3000 6x4 Dump Truck With Cummins Engine for Sale
Used Shacman F3000 6x4 Dump Truck With Cummins Engine for Sale
Used Shacman F3000 6x4 Dump Truck With Cummins Engine for Sale
Truck Model: SX3255DR384
Engine Model: ISME385 30
Drive Type: 6x4
Transmission: Fast 10JSD180
Displacement: 10.8L
Fuel Tank Capacity: 300L
Max Horsepower: 385hp
Fuel Type: Diesel
Emission: Euro Ⅲ
Steering System Model: ZF, LHD
Front Axle: 16T MAN
Rear Axle: 16T MAN
Tyre: 12.00R20
Number of Tires: 10
Wheelbase(mm): 3800+1350mm
Container Form: Self-unloading Type
Container Type: Square Type
Cab Lift: Electric, Front lifting
Cargo Thickness: Bottom 8 mm, side 6 mm
Body Dimension(LxWxH)(mm): 5600×2300×1160
Maximum Torque Speed: 1200rpm
Curb Weight: 12.5 Ton
Rated Load: 12.37 Ton
Gross Vehicle Weight: 25 Ton
Tonnage Class: Heavy Truck

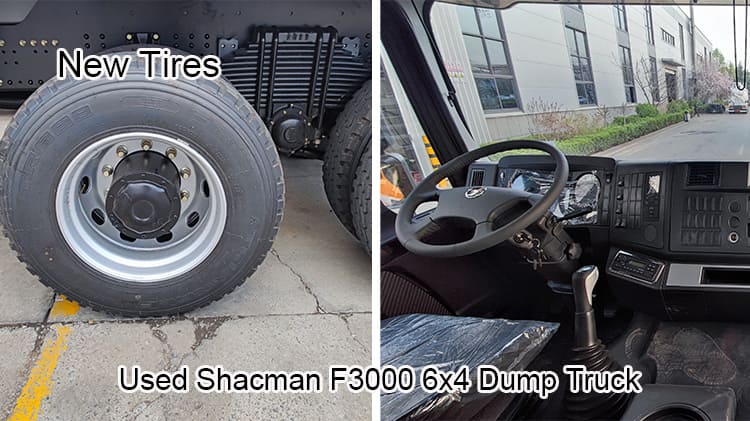

Tires: The used Shacman F3000 6x4 dump truck with Cummins engine rides on heavy gauge tires of 12.00 R20 16PR with a total of 10 tires. This not only improves the load-carrying capacity of the used Shacman F3000 6x4 dump truck with Cummins engine, but also significantly enhances the stability during the ride, allowing it to perform well even in rough road conditions.
Braking: Both the front and rear wheels of the used Shacman F3000 6x4 dump truck with Cummins engine use drum brakes, combined with the ABS anti-lock braking system, which significantly enhances braking stability and driving safety.
Cab: The main driver's seat of the used Shacman F3000 6x4 dump truck with Cummins engine is an airbag shock-absorbing seat, which greatly improves driving comfort. The used Shacman F3000 6x4 dump truck with Cummins engine is equipped with automatic air conditioning to ensure the comfort of the interior environment. The used Shacman F3000 6x4 dump truck with Cummins engine is equipped with electric rearview mirrors and rearview mirror electric heating function, which improves the clarity of vision, especially in bad weather. The central control panel design of the used Shacman F3000 6x4 dump truck with Cummins engine is simple and intuitive. And the air conditioning control switch and LCD screen are easy to operate.

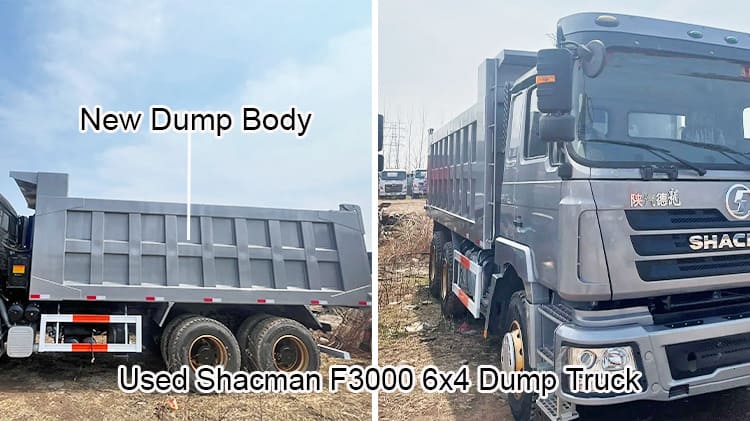

Cargo box: The used Shacman F3000 6x4 dump truck with Cummins engine has a cargo box dimension of 5600x2300x1160mm and is capable of meeting most heavy-duty material transportation needs. The cargo box of the used Shacman F3000 6x4 dump truck with Cummins engine features a self-dump design that makes cargo unloading more efficient and reduces manual intervention.
Safety: The used Shacman F3000 6x4 dump truck with Cummins engine comes standard with ABS anti-lock braking system, which further improves driving safety and effectively prevents wheel locking during emergency braking. The used Shacman F3000 6x4 dump truck with Cummins engine comes standard with daytime running lights for improved visibility and safety while driving. In addition, both the front and rear wheels use drum brakes, providing powerful braking performance. Even under heavy load conditions, the braking effect of the used Shacman F3000 6x4 dump truck with Cummins engine is still reliable and stable.
Fuel tank: The fuel tank capacity reaches 400 liters, significantly reducing the frequency of refueling, ensuring the continuous operation capability of the used Shacman F3000 6x4 dump truck with Cummins engine in long-distance transportation, and improving the overall transportation efficiency. This design saves valuable time and costs for drivers and transportation businesses.
The combination of dump cargo boxes and high-capacity fuel tanks provided in the used Shacman F3000 6x4 dump truck with Cummins engine not only improves work efficiency, but also reduces running costs. At the same time, durability and rich configuration provide more reliable transportation guarantee for the used Shacman F3000 6x4 dump truck with Cummins engine.
