The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel has an efficient power chain, reasonable chassis layout and practical cargo compartment. It is very cost-effective and a powerful helper for heavy-duty transportation.
Power: used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel is powered by a 310 horsepower SINOTRUK-specific engine. The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel is matched with a 12-speed engineering-specific gearbox and a 17-ton engineering-specific drive axle, and the power chain transmission is efficient, providing excellent low-speed high torque output.
Frame: The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel features a frame design with high load capacity and light dead weight, which significantly reduces fuel consumption while improving load capacity.

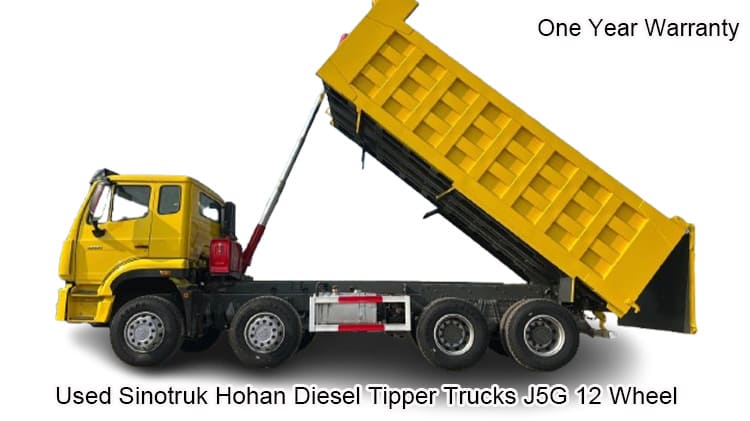

Lift: The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel features a front-mounted single-cylinder direct-push lift mechanism. The front single-cylinder design improves the reliability and efficiency of cargo compartment lifting, making the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel suitable for the high-frequency needs of engineering operations.

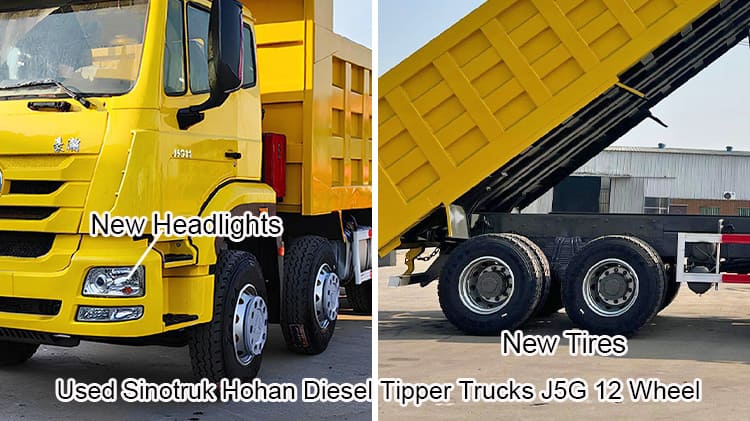

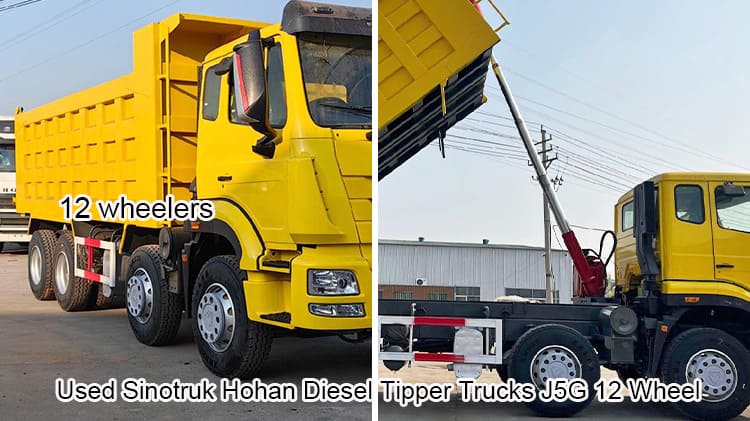

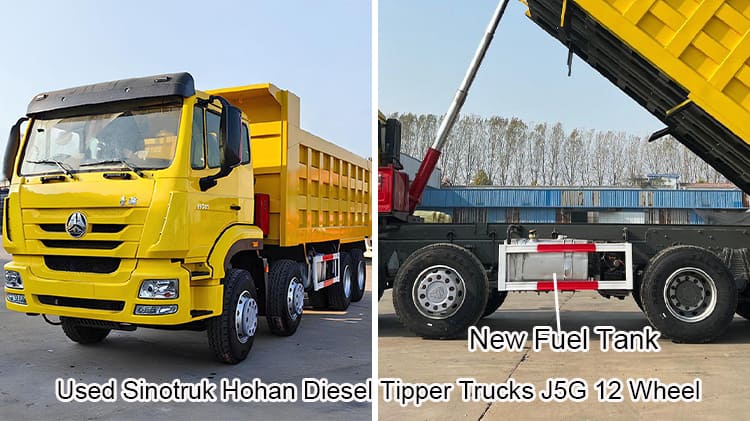

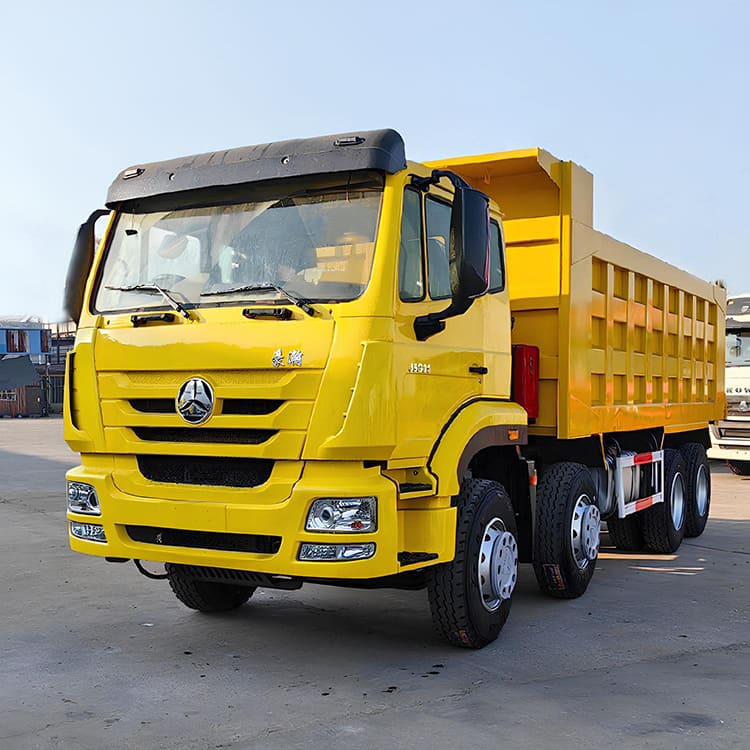

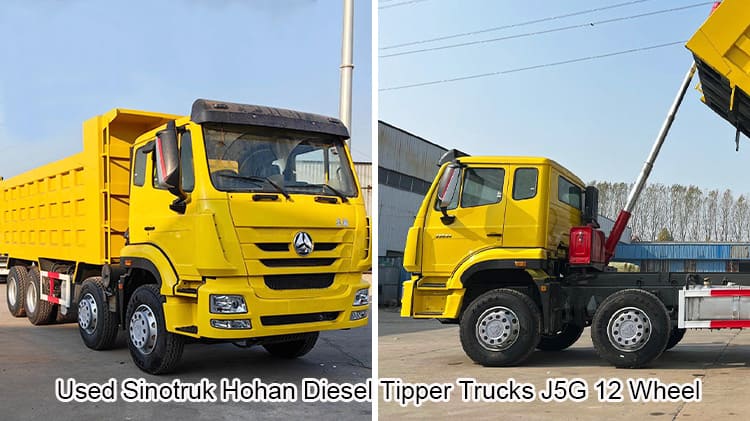

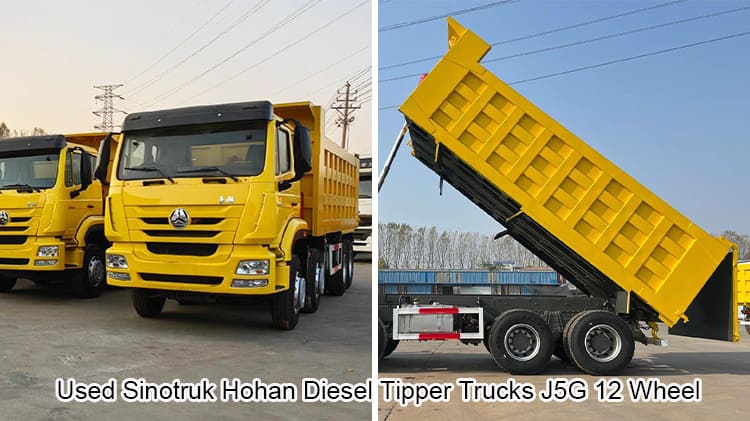

Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Used Sinotruk Hohan Lorry Diesel Tipper Trucks J5G 12 Wheel for sale
Truck Model: ZZ3315N3563D1
Engine Model: MC07.31-40
Drive Type: 8x4
Transmission: HW19712C
Displacement: 6.87L
Fuel Tank Capacity: 400L
Max Horsepower: 310hp
Fuel Type: Diesel
Emission: Euro Ⅳ
Steering System Model: ZF, LHD
Front Axle: H153
Rear Axle: HT457
Tyre: 11.00R20
Number of Tires: 12
Wheelbase(mm): 1800+3500+1350mm
Container Form: Self-unloading Type
Container Type: Square Type
Cab Lift: Electric, Front lifting
Dimension(LxWxH)(mm): 9960x2496x3490
Body Dimension(LxWxH)(mm): 7300×2300×1140
Loading Weight(kg): 15040
Gross Vehicle Weight(kg): 31000
Layout: On the left side of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel, an air filter is arranged between the first and second bridges, and a fuel tank is arranged between the second and third bridges. On the right side of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel, an exhaust gas aftertreatment device is arranged between the first and second bridges, and a battery compartment, air storage cylinder, drying tank and urea tank are arranged between the second and third bridges. Although there are many chassis parts, the overall layout of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel is scientific and reasonable, which is convenient for daily maintenance and maintenance.
Cargo box: The cargo compartment of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel adopts a square structure, which further increases the volume of the compartment. At the same time, the loading capacity is also increased, making the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel meet the needs of engineering transportation.
Cab: The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel focuses on practicality, and the interior design is simple and elegant, taking into account both storage and comfort functions. The central multimedia area of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel features two deep storage slots for convenient storage. The right side of the instrument panel of the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel is equipped with a water cup holder and storage bin for everyday needs. The spacious sleeper area behind the driver is designed to provide a good resting environment, so that the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel can be used for long and high-intensity work.
The used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel have low speed and high torque to adapt to the complex working conditions and heavy-duty transportation needs of engineering operations. In addition, the used Sinotruk Hohan lorry diesel tipper trucks J5G 12 wheel is also equipped with a square large-volume cargo compartment and an efficient lifting mechanism with strong loading capacity.
