Whether on construction sites, heavy material hoisting, or other job sites with complex hoisting requirements, used Howo 8x4 truck mounted crane can provide efficient, reliable, and safe hoisting services. In terms of upper configuration, the used Howo 8x4 truck mounted crane uses a 14-ton five-section boom crane, which can meet the needs of difficult lifting operations.
Power: The Weichai 350 HP engine used by the Howo 8x4 truck mounted crane has strong power and can run stably under various working conditions to ensure stability and power output under high loads. used Howo 8x4 truck mounted crane is equipped with heavy truck 12-speed transmission and high-strength transmission system, can provide more refined power allocation, to adapt to different speeds and loads of work needs.
Crane Configuration: The used Howo 8x4 truck mounted crane is equipped with 14 tons of five-section boom crane, with excellent operating range and efficient lifting capacity. The five-section arm design provides a long arm length (up to 19.6 m) and a high lifting height (21.6 m), which enables the used Howo 8x4 truck mounted crane to maintain good stability and accuracy when lifting long-span, high-altitude objects. The crane of the used Howo 8x4 truck mounted crane is equipped with high-altitude seat, remote control start and stop, two-stage composite front leg, automatic hook and over-winding alarm, which greatly improves the safety and convenience of operation.

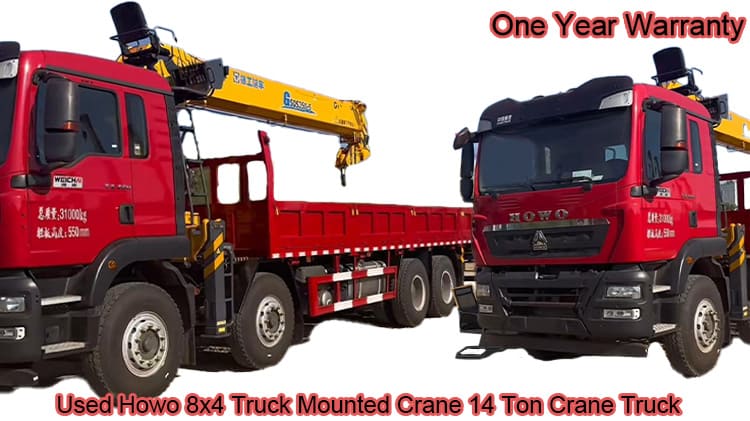

Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck for Sale in Cape Verde
Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck for Sale in Cape Verde
Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck for Sale in Cape Verde
Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck for Sale in Cape Verde
Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck for Sale in Cape Verde

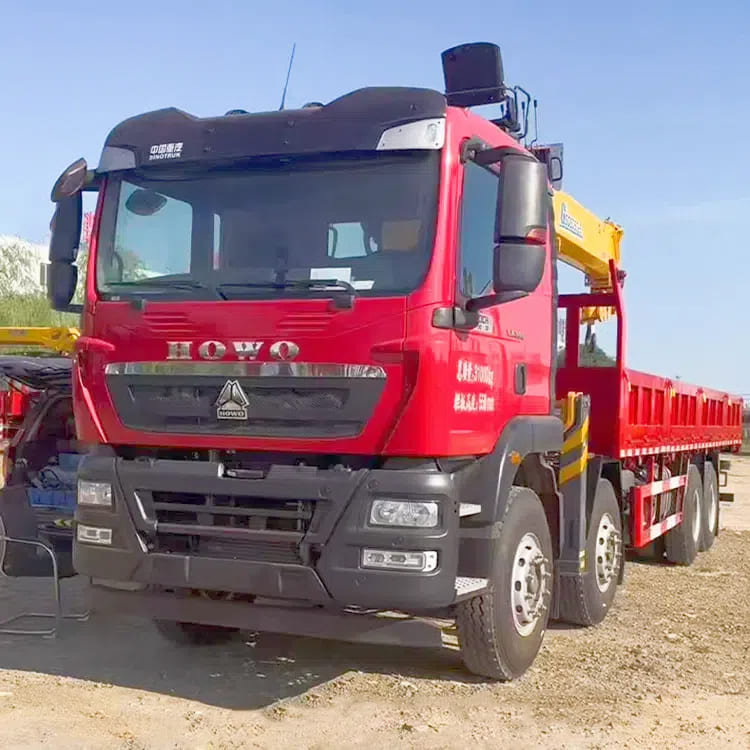

Truck Model: Used Howo 8x4 Truck Mounted Crane 14 Ton Crane Truck
Engine Model: WP8.350E61
Drive Type: 8x4
Transmission: HW9
Displacement: 7.8L
Fuel Tank Capacity: 400L
Max Horsepower: 350hp
Fuel Type: Diesel
Emission: Euro Ⅴ
Steering System Model: ZF, LHD
Front Axle: HF9
Rear Axle: MAT12T

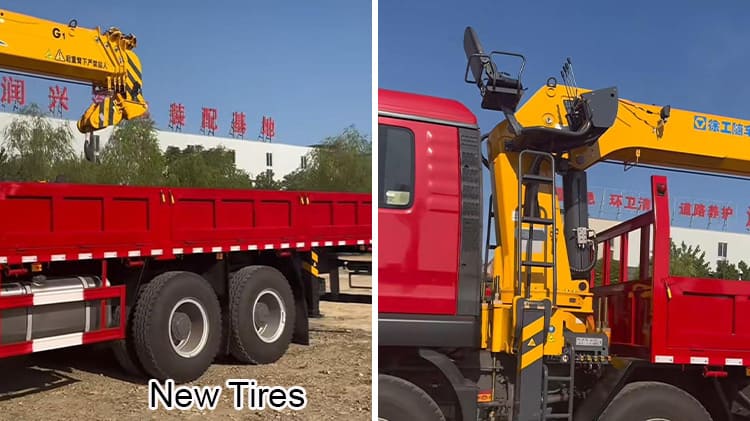

Tyre: 12.00R20

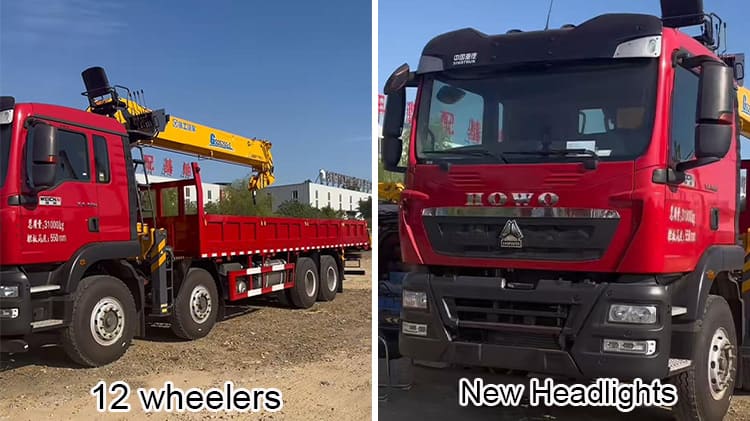

Number of Tires: 12
Wheelbase(mm): 2100+4300+1350mm
Dimension(LxWxH)(mm): 12000×2550×3950
Cargo Dimension(mm): 8300×2450×550mm
Crane Arm Length: 19.6m

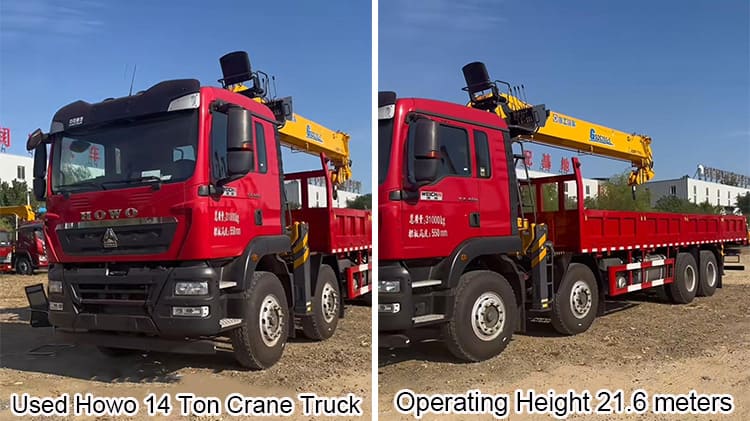

Lifting Height of Crane: 21.6m
Crane Tonnage: 14 Ton
Crane Boom Number: 5
Cargo: The cargo thickness of the used Howo 8x4 truck mounted crane 14 ton crane truck for sale is designed with engineered fully folded steel with 3mm side thickness and 5mm bottom thickness, which has extremely high durability and compression resistance. The cargo size of the used Howo 8x4 truck mounted crane 14 ton crane truck for sale is 8300x2450x550mm, which can accommodate various types of loads to meet the loading needs under different working conditions. This design not only enhances the load capacity of the cargo box, but also improves the loading and unloading efficiency.
Cab: The cab of the used Howo 8x4 truck mounted crane 14 ton crane truck for sale has an electric lift function to improve the comfort and convenience of operation. In addition, the used Howo 8x4 truck mounted crane 14 ton crane truck for sale is equipped with a travel recorder, which can record the relevant data during the driving process in real time, which helps the driver's safety management and long-term maintenance of the vehicle.

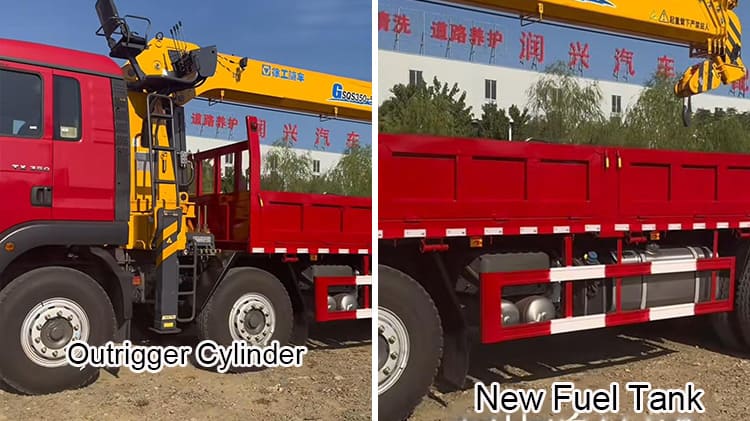

Safety: As a special truck mounted crane, the used Howo 8x4 truck mounted crane 14 ton crane truck for sale has also been fully considered in terms of safety. The used Howo 8x4 truck mounted crane 14 ton crane truck for sale is equipped with the original single chamber rear leg for greater support and stability, ensuring that the body will not tilt or become unstable during the lifting process. The two-section composite front legs of the used Howo 8x4 truck mounted crane 14 ton crane truck for sale automatically adjust in different operating environments for increased safety and flexibility. The combination of the 7.5-ton front axle and the 16-ton two-wheel reduction axle makes the weight distribution of the body more balanced, improving the stability of the used Howo 8x4 truck mounted crane 14 ton crane truck for sale in difficult terrain.
According to the structural form of the crane, the used Howo 8x4 truck mounted crane can be divided into two types: straight arm type and folding arm type. The boom of the straight arm crane is fixed, which is suitable for most vertical lifting operations. The folding arm crane has multiple folding arms, which can complete complex lifting tasks in a relatively small space, and has better flexibility and adaptability. Depending on the lifting capacity of the crane, the used Howo 8x4 truck mounted crane has a different tonnage range, from 5 tons, 6 tons to 20 tons, 30 tons and even 60 tons, to meet the needs of different loads and working environments.
