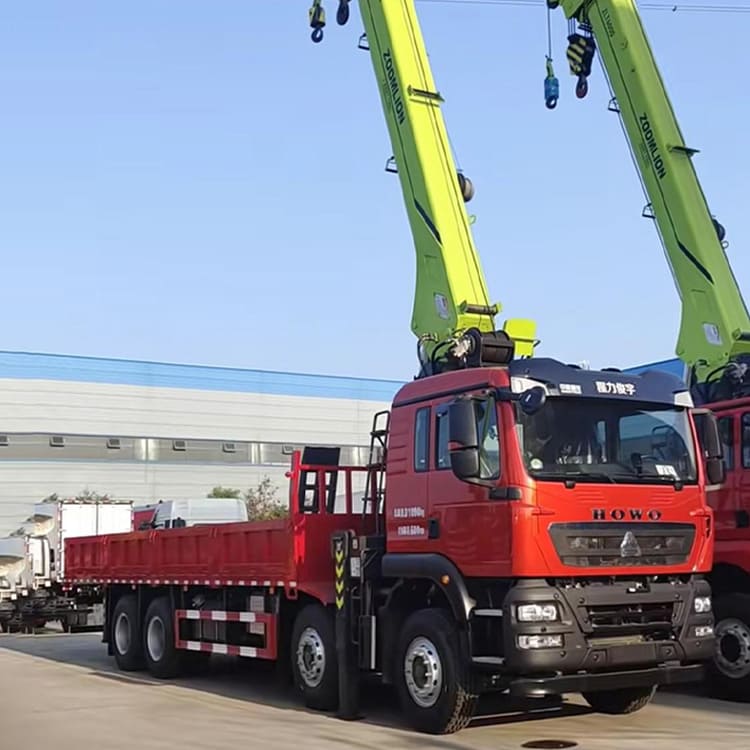

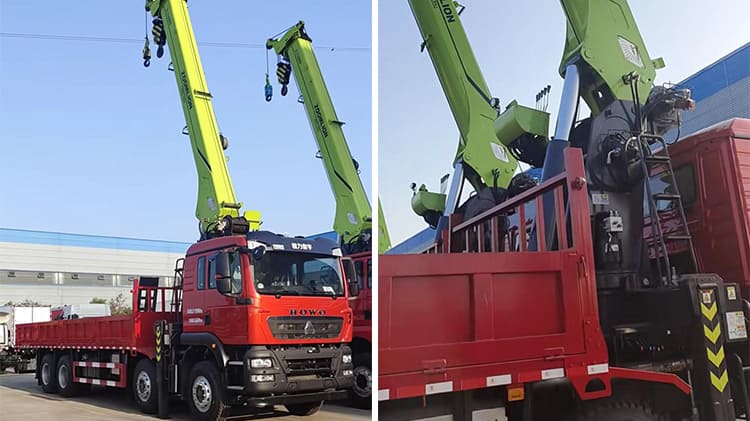

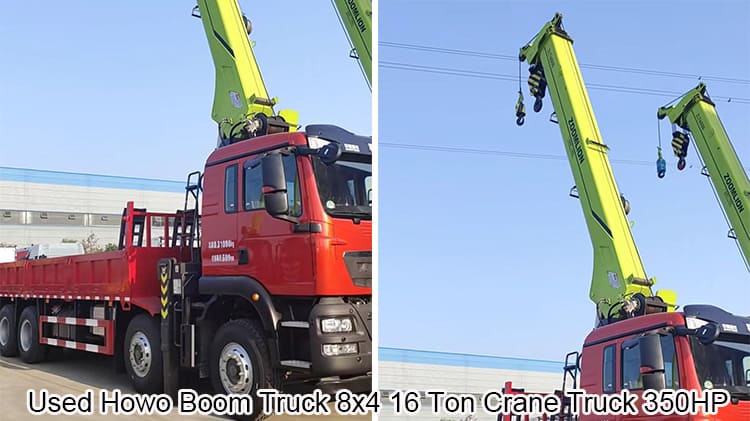

The used Howo boom truck 8x4 crane truck is equipped with a Weichai 350 HP engine, coupled with a Howo 12-speed transmission, to provide strong power. The used Howo boom truck 8x4 crane truck adopts a 16-ton five-section boom crane with a maximum boom length of 22 meters, which can meet the needs of large-span and high-lift operations.

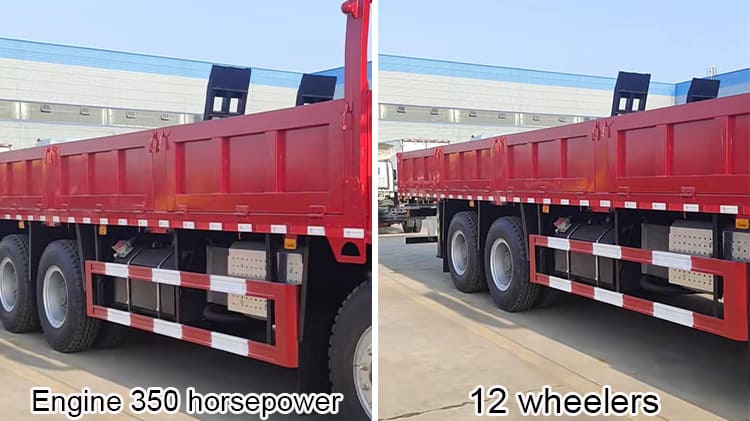

Strong power: The Weichai 350 horsepower engine equipped with the used Howo boom truck 16 ton crane truck for sale provides a stable power output and can maintain efficient operation under complex working conditions. The configuration of Howo's 12-speed gearbox allows the used Howo boom truck 8x4 crane truck to still accurately adjust power under high loads.

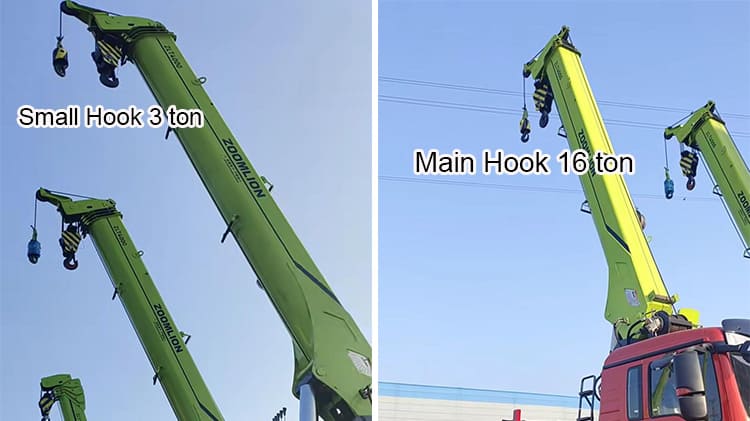

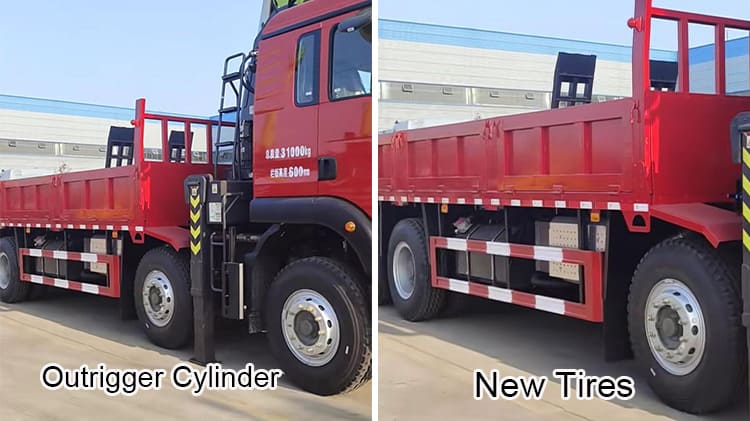

Lifting capacity: The 16-ton five-section crane used by Howo boom truck 8x4 crane truck has a maximum arm length of 22 meters and strong lifting capacity. The used Howo boom truck 8x4 crane truck dual-engine composite front leg and two-arm single-out design, enhance the stability and operational flexibility of the crane, can adapt to different lifting operations needs. used Howo boom truck 8x4 crane truck equipped with 3 tons of small hook makes the lifting operation more flexible, suitable for different objects lifting.

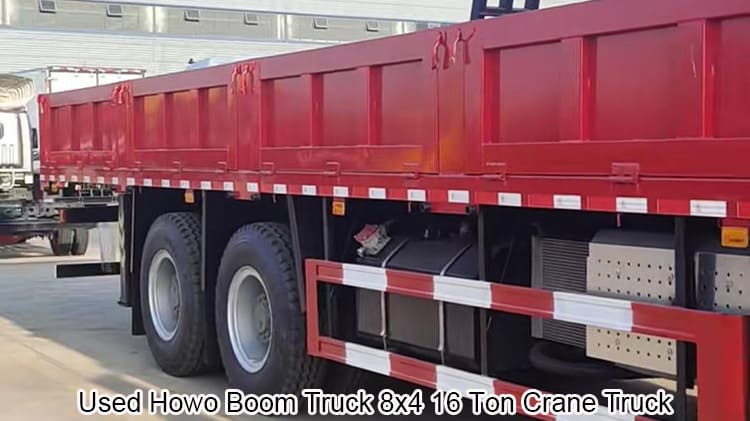

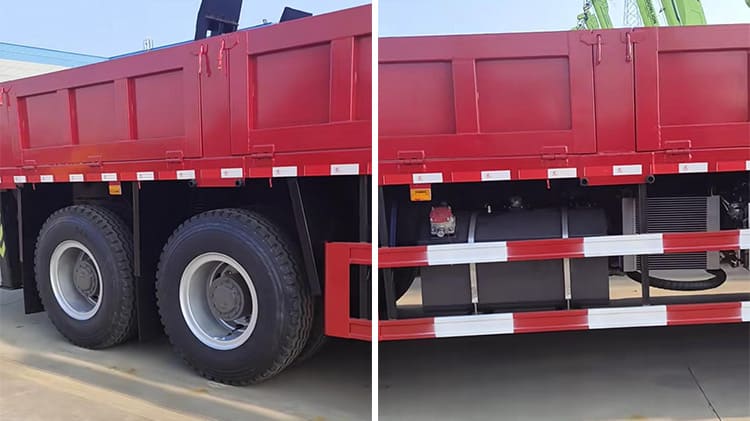

High load capacity: The configuration of the 16-ton wheel reduction rear axle effectively improves the carrying capacity and stability of the used Howo boom truck 16 ton crane truck for sale, especially in the process of heavy lifting, to ensure that the body is stable and not deviated.
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Used Howo Boom Truck 8x4 Crane Truck | Used Howo Boom Truck 16 Ton Crane Truck for Sale in Nicaragua
Truck Model: Used Howo Boom Truck 16 Ton Crane Truck for Sale
Engine Model: WP8.350E61
Drive Type: 8x4
Transmission: HW25712XSTL
Displacement: 7.8L
Fuel Tank Capacity: 400L
Max Horsepower: 350hp
Fuel Type: Diesel
Emission: Euro Ⅴ
Steering System Model: ZF, LHD
Front Axle: HF9
Rear Axle: MAT12T
Tyre: 12.00R20
Number of Tires: 12
Wheelbase(mm): 2100+4300+1350mm
Dimension(LxWxH)(mm): 12000×2550×3950
Cargo Dimension(mm): 8300×2450×550mm
Crane Arm Length: 22m
Lifting Height of Crane: 24m
Crane Tonnage: 16 Ton
Crane Boom Number: 5
Straight arm used Howo boom truck 8x4 crane truck is a simple structure and high stability of the lifting vehicle, especially for the need for a long boom and a large lifting range of work scenarios. The boom of straight arm crane is usually composed of a fixed arm and a number of telescopic arms, and the length and telescopic mode of the telescopic arm are adjusted according to the operation requirements. Its telescopic function mainly depends on the hydraulic system, and the telescopic arm of single or double section is usually completed by pushing and pulling the hydraulic cylinder; The multi-section telescopic arm combines the synergistic action of hydraulic cylinder and wire rope. In general, the first two sections of the telescopic arm will extend and retract in turn, and the final telescopic arm will be pulled by the wire rope, and the other arms will expand and expand at the same time.
Compared with the straight-arm used Howo boom truck 8x4 crane truck, the folding arm crane is more compact and flexible, suitable for situations where space is limited or fast operation is required. The boom of a folding boom crane is usually composed of two parts, the main boom and the boom, which are connected together by a rotating shaft and a folding hydraulic cylinder. The function of the folding hydraulic cylinder is to rotate the lifting arm around the main arm, so as to change the Angle of the lifting arm and realize the lifting operation.
The main advantage of the used Howo boom truck 8x4 crane truck is its fast action and high working efficiency. The design of the boom makes the hydraulic cylinder stroke short, the processing difficulty is low, so the relative cost is low, and the maintenance is easy. The hydraulic cylinder is installed on the outside of the boom, if there is a failure (such as oil leakage of the hydraulic cylinder joint, etc.), the maintenance and replacement are more convenient, and there is no need to disassemble too much.
The variable amplitude hydraulic cylinder used in Howo boom truck 8x4 crane truck plays a key role in lifting heavy objects. The piston rod of the variable amplitude hydraulic cylinder can adjust the Angle and height of the boom through expansion, so as to complete the lifting process. When the piston rod is retracted, the boom will rotate clockwise, the hook will drop, and the weight will be lifted. When the piston rod is extended, the boom rotates counterclockwise and the weight is lifted to the target height.
